Planogram basics for independent retailers: better shelves, faster

A planogram is a shelf map showing exactly where every product sits, how many facings it gets, and why. Get it right and you increase sales, cut restocking time, and stop staff guessing where things go after a delivery. This guide covers:

• The five planogram types and which one suits a corner shop or forecourt store
• The elements and rules that make a layout actually work (facings, adjacencies, eye level, velocity)
• A step-by-step process for building your first planogram on a single bay
• How to measure compliance and avoid the mistakes that quietly wreck performance

Key Takeaways

Planogram success depends on accurate SKU data, disciplined version control, and starting with one bay before expanding across a store or estate.

Ready to put these basics into practice with products that actually earn their shelf space? Woodford works with independent retailers across the country to source trend-led ranges and support the merchandising decisions that follow, from picking the right starting category to keeping your ordering aligned with what the shelf demands.

Table of Contents

• What is a planogram and which type should you use?
• What elements and design rules make a planogram work?
• What business results should you expect from a planogram?
• How do you build a basic planogram for one bay?
• Which mistakes quietly undermine planogram performance?
• What tools and workflow keep a planogram accurate over time?
• What does Woodford recommend to independents starting out?
• How do planograms connect with your inventory system?
• How do you train staff to run planograms properly?
• How do planograms change customer shopping behaviour?
• What challenges come with digital versus physical planogram deployment?
• Sources

What is a planogram and which type should you use?

A planogram translates sales data and shopper behaviour into a physical instruction: this product, this shelf, this many facings, in this spot. Shopify’s guide to visual merchandising puts it simply: a planogram maps exactly where products belong on shelves, using sales data and shopper behaviour to guide placement and manage floor space. Picture a soft drinks bay where the two best-selling colas sit at eye level with four facings each, while a slow-moving flavoured water gets one facing on the bottom shelf. That is a planogram doing its job.

There are five main types, and most independents only ever need two of them:

• Shelf or image planograms show a single shelf or bay in detail, ideal for one category like crisps or confectionery.
• Schematic planograms cover a whole fixture or aisle, useful once you are running several bays consistently.
• Display or endcap planograms plan promotional or gondola-end space, often tied to a seasonal push.
• Floor planograms map the entire store layout, including fixtures, tills and traffic routes.
• Analysis planograms overlay sales or margin data onto a layout to spot underperforming space.

If you are starting from scratch, pick a shelf planogram for your best-selling category or an endcap planogram for your next promotion. Both are small enough to build in an afternoon and prove the concept before you touch the rest of the shop.

What elements and design rules make a planogram work?

A planogram is only as good as the data and rules behind it. Get the components wrong and even a beautifully drawn shelf map will underperform.

The essential building blocks are:

1. Facings – how many units of each SKU face the shopper; more facings for faster sellers, fewer for niche lines.
2. SKU dimensions – exact width, height and depth for every product, taken from the pack itself rather than a supplier spec sheet.
3. Fixture details – shelf depth, height adjustability and weight limits, since a planogram built for the wrong fixture never survives contact with reality.
4. Adjacencies – which products sit next to each other, driven by how shoppers actually buy (crisps near dips, mixers near spirits).
5. Traffic and eye-level placement – high-velocity and high-margin items go where the eye lands first and where footfall is heaviest.

Space allocation should follow sales contribution, not gut feel. A small-scale, data-driven approach to facing allocation that gives space proportional to sales performs better than splitting shelf space equally between SKUs. If one energy drink accounts for 30% of category sales, it deserves roughly 30% of the facings, not the same three inches as everything else.

Four principles keep a layout functional rather than just tidy: visibility (nothing worth selling hides behind packaging), consistency (similar categories follow the same logic store to store), compatibility (products that get bought together sit together), and efficiency (no wasted depth or dead shelf space).

Pro Tip: Before allocating a single facing, rank your SKUs by weekly unit sales and gross margin side by side. The overlap between the two lists tells you exactly which products earn prime shelf space.

What business results should you expect from a planogram?

Retailers who implement planograms properly typically see three outcomes: a sales lift on the categories reworked, fewer stockouts on fast movers, and quicker restocking because staff know exactly what goes where without checking a note. Shopify’s research on planogram adoption found that placing high-demand items at eye level can cut restocking time and boost sales on those lines specifically, which is precisely the kind of measurable win an independent needs before rolling changes out further.

None of that matters unless you track it. Four KPIs give you a genuine read on performance:

• Facing accuracy rate – the percentage of shelf positions matching the approved plan.
• SKU-level compliance – not just “is the product there” but correct facing count, sequence and price.
• Shelf drift duration – how long a layout stays accurate before staff start improvising.
• Issue resolution speed – how quickly a spotted deviation gets corrected.

Pull this data from your till reports, manual shelf counts, and photo audits taken on every visit. None of it requires expensive software to start.

How do you build a basic planogram for one bay?

Start with one category and one fixture. Trying to redesign the whole shop in week one is how most planogram projects stall before they deliver anything.

1. Collect product master data. List every SKU in the category with its dimensions, current weekly sales, and margin. A clean SKU system at this stage saves hours later, since mismatched barcodes or wrong pack sizes will throw off every facing calculation downstream.
2. Measure the fixture. Record shelf width, depth, height between shelves, and any fixed obstructions like dividers or price rail clips.
3. Create a shelf grid. A spreadsheet works fine for a single bay: rows for shelves, columns for horizontal position, cells sized to product width.
4. Allocate facings and positions. Apply the velocity-and-margin method from the section above, put winners at eye level, and group adjacent products the way shoppers actually shop.
5. Execute, photograph, measure, adjust. Reset the bay, take a clear before-and-after photo, then track sales for two to four weeks against the same period last month.
6. Record version details. Note a version number, the approval date, and which store or stores the layout applies to.

That last step matters more than it looks. According to guidance in Woodford’s food merchandising workflow, a connected, data-driven merchandising process with proper version control and real-time verification reduces execution failures and improves shelf performance. Skip it, and you will not know six months from now which layout you are even meant to be running.

For a single-site independent, the whole cycle from data collection to first measurement should take no more than two weeks. If you run more than one shop, this same process becomes your template for every future category reset:

• Data collection: 1 to 2 days
• Grid build and facing allocation: half a day
• Physical reset and photo audit: same day
• First sales read: two to four weeks

Independent retailers taking their first step into planograms should pilot on a single high-impact category or bay before committing time to anything larger, which is exactly the sequence above.

Which mistakes quietly undermine planogram performance?

Most planogram failures are not design failures. They are process failures that happen weeks after the reset, once nobody is watching.

• Set-and-forget layouts. A plan built once and never revisited drifts within weeks as staff restock on autopilot. Fix it with distribution logs and version control so every store knows which layout is current.
• Bad product data. Wrong dimensions or outdated barcodes throw off every facing calculation before you even start. Run a product data management (PDM) check on the full SKU list before building anything.
• Over-complex layouts. Trying to plan an entire aisle in your first attempt usually collapses under its own detail. Start with one bay, prove it works, then expand.
• Poor promotional coordination. A planogram that ignores the promotional calendar means staff fighting the layout every time a display needs building. Sync resets with upcoming promotions so the two never contradict each other.

Pro Tip: Keep a single shared folder, even a basic one, with the current approved layout for each bay. When a planogram lives in someone’s email inbox instead of a shared location, version drift is not a risk, it is a certainty.

What tools and workflow keep a planogram accurate over time?

You do not need enterprise software to run a disciplined planogram process. Structured checklists, photo audits and consistent version control get most independents 90% of the way there, and research on compliance auditing for smaller brands backs that up directly.

Four tool categories cover the full workflow:

• Planogram editors – anything from a spreadsheet grid to dedicated software for drawing and sharing shelf layouts.
• Compliance auditing apps – simple photo-capture tools that let staff log a shelf against the approved plan.
• Product data management (PDM) – a single source of truth for SKU dimensions, barcodes and pack sizes.
• Distribution platforms – a shared portal or folder that pushes the current version to every store and logs who has confirmed receipt.

Treat every update as a formal release, not a casual suggestion. Planograms work best as living documents rather than static files, which means each one needs a version number, an approval date, and a list of exactly which stores it applies to.

This same discipline runs through Woodford’s own food merchandising workflow, where distribution, compliance checks and photo audits are treated as one continuous loop rather than separate one-off tasks.

What does Woodford recommend to independents starting out?

Woodford works with independent retailers across the country rolling out new ranges, and the pattern behind every successful planogram is the same: start small, get the data right, and close the feedback loop before scaling up.

• Choose one high-impact category or bay rather than the whole store, and give it a proper before-and-after sales comparison.
• Check SKU-level master data first: pack dimensions, barcodes and facing counts, because a plan built on wrong data fails regardless of how well it is designed.
• Distribute the finished layout through a single centralised digital platform, and log confirmation of receipt at every store to stop version drift creeping in.
• Photograph the shelf on the same visit as the reset, and correct any deviation immediately rather than waiting for the next scheduled check.

Independent retailers taking their first step with planograms should pilot on a single high-impact category or bay to test and iterate quickly, rather than attempting a full-store redesign from day one.

That advice, drawn from practical guidance for independent retailers, holds regardless of shop size. A connected merchandising workflow with real-time verification consistently outperforms one built on spreadsheets that nobody checks after week one. Choosing a strong starting category also matters: Woodford’s guide to strategic food brands for UK independents is worth reading before you pick which bay to pilot first.

How do planograms connect with your inventory system?

A planogram tells you where a product goes; your inventory system tells you whether that product actually exists to put there. The two need to talk to each other, or you end up with a beautifully planned shelf and a gap where the stock should be.

The practical link is facings-to-stock ratio. If your planogram allocates six facings to a fast-moving soft drink, your inventory system needs to hold enough backstock to refill that space between deliveries, not just enough for the shelf itself. Retailers who plan facings without checking delivery frequency against sell-through rate often end up with a gap on the shelf by Thursday and a full stockroom nobody planned for.

Woodford’s guide on managing food inventory for better profit covers this link directly: your reorder points and case sizes should be set with the planogram’s facing count in mind, not treated as a separate exercise. If a product gets four facings on the shelf but arrives in cases of 24, work out how many shelf refills that represents before you commit to the layout.

The other benefit runs the other way. Once your planogram tells you exactly how much space a category has, you can spot when a fixture is oversized for its sales or undersized for its demand, information that feeds straight back into ordering decisions. That two-way link between shelf space and stock data is what separates a planogram that sits in a drawer from one that actively shapes how you buy.

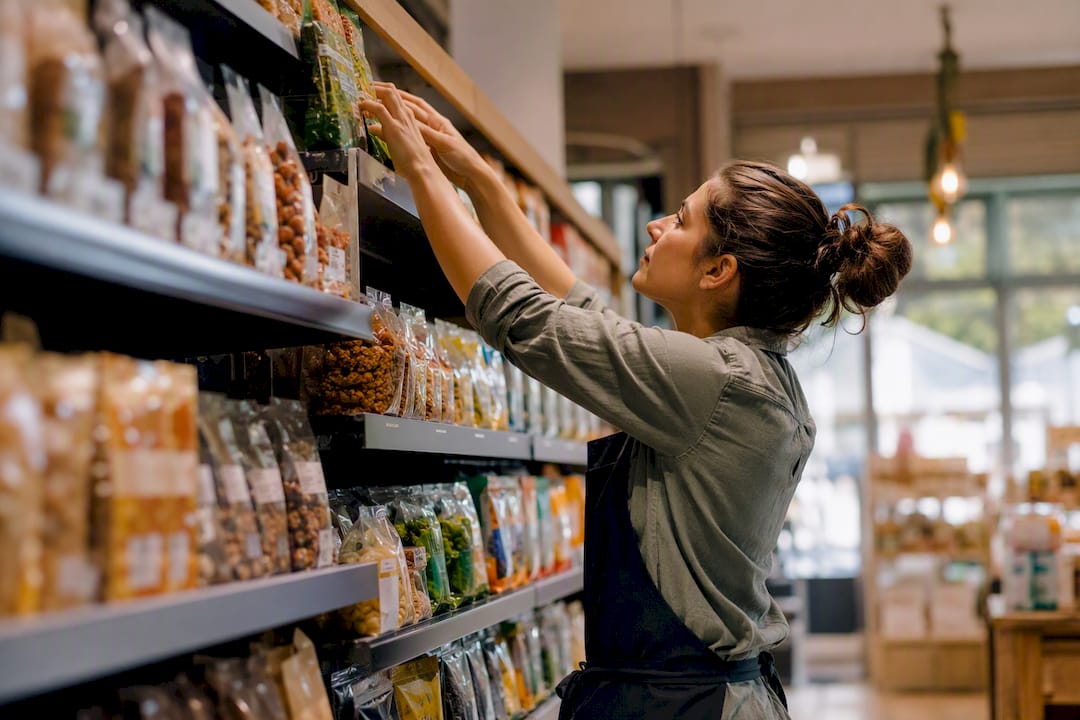

How do you train staff to run planograms properly?

A perfect planogram executed badly is worse than a mediocre one executed consistently. Staff training is where most of the value either gets captured or lost.

Keep the training itself simple. Show staff the approved photo of the finished bay, not just a diagram, since a real photograph removes any ambiguity about what “correct” looks like. Walk through the reasoning briefly, why the fast sellers sit at eye level, why certain products sit together, because staff who understand the logic are far more likely to maintain it correctly when restocking under pressure.

Build a short checklist for every reset: confirm facing counts, check the sequence left to right, verify pricing matches the plan, and photograph the result before moving on. That checklist becomes the same tool used for compliance audits later, so training and measurement reinforce each other rather than running as separate systems.

New staff need the same grounding as existing team members, ideally before their first solo shelf restock. A five-minute walkthrough of the current approved layout during induction prevents the single most common cause of drift: someone new filling a gap with whatever fits, rather than what the plan specifies.

Revisit training whenever a planogram changes, not just once a year. If a reset happens and only the shift manager knows about it, the layout will not survive the next delivery handled by someone else. Treat the distribution of a new planogram and the training on it as one event, not two separate steps that happen days apart.

How do planograms change customer shopping behaviour?

Shoppers do not consciously notice a well-built planogram, and that is precisely the point. The layout is working when browsing feels effortless and the products people were already inclined to buy are simply easier to find.

Eye-level placement genuinely shifts what gets picked up. Products at eye level get seen first and chosen more often, which is exactly why high-margin and high-velocity items belong there rather than on a bottom shelf. Adjacency does something similar for basket size: placing complementary products next to each other, mixers beside spirits, dips beside crisps, prompts add-on purchases that a shopper had not necessarily planned before walking in.

Consistency plays a quieter but equally important role. Shoppers build a mental map of where things are in a store they visit regularly, and a layout that keeps shifting without reason erodes that familiarity, sending customers elsewhere out of frustration rather than loyalty. This is one of the strongest arguments for version control: it is not just an operational nicety, it directly protects the shopping experience that keeps people coming back.

The flip side matters too. A cluttered or inconsistent shelf slows shoppers down, and slower browsing does not mean more sales, it usually means abandoned baskets and missed impulse purchases. A clean, well-signposted planogram reduces the cognitive effort required to shop, which is ultimately why the sales lift shows up in categories that get reworked properly.

What challenges come with digital versus physical planogram deployment?

Digital planograms are easy to update and distribute, but they are only as good as the discipline behind their use. A shared folder or portal solves the distribution problem instantly, yet it does nothing to stop a busy store manager glancing at the plan once and reverting to habit within a fortnight.

Physical execution is where the real friction lives. A digital file can be perfectly accurate and still fail on the shop floor if the fixture in-store does not match the fixture assumed in the plan, a common issue for independents running older or mismatched shelving across multiple sites. Measuring your actual fixtures before building the digital layout, not after, avoids this entirely.

The other tension is speed versus verification. Digital tools make it fast to push a new layout to every store at once, but that speed is meaningless without confirmation that each store has actually implemented it. This is exactly why version numbers, approval dates and a logged store list matter: without them, a digital planogram creates the illusion of consistency across sites while the physical shelves quietly diverge from each other.

For a single-site independent, this challenge is smaller but not absent. The gap tends to appear between the person who builds the plan and the person who executes it, particularly if they are not the same individual. A same-visit photo audit closes that gap fast, turning a digital file into a physical result you can actually verify rather than assume.
